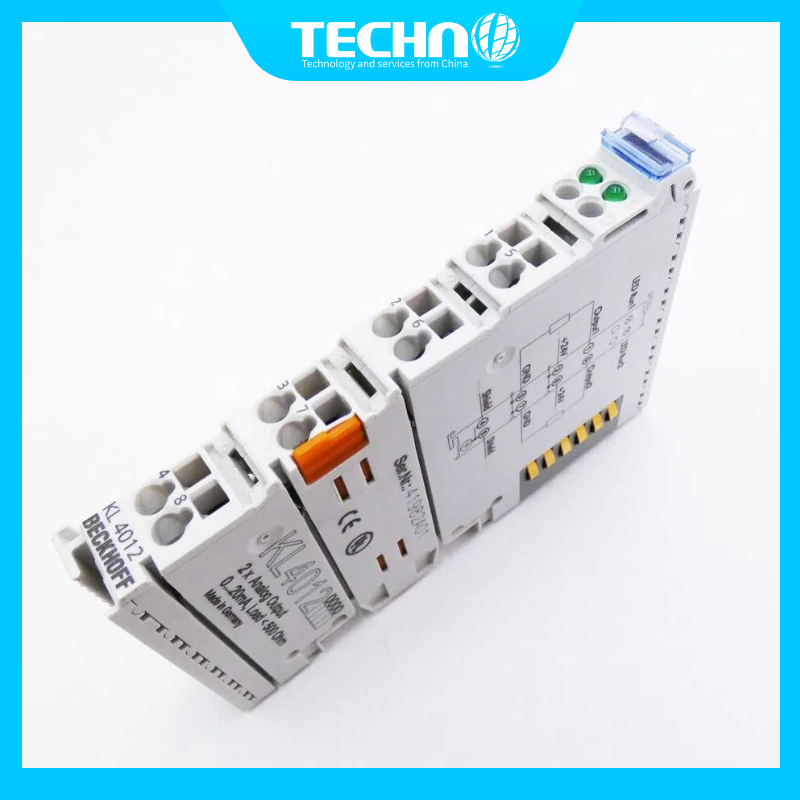

Kl4112 Kl4012 Kl4031 Kl4414 Kl4132 Kl4034 Kl4032 Kl4428 Kl4494 Kl4434 Beckhoff Terminal

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • Kl4112 Kl4012 Kl4031 Kl4414 Kl4132 Kl4034 Kl4032 Kl4428 Kl4494 Kl4434

  • BECKHOFF

  • Kl4112 Kl4012 Kl4031 Kl4414 Kl4132 Kl4034 Kl4032 Kl4428 Kl4494 Kl4434

03、通用0-203、通用0-3

Beckhoff Automation

New Automation Technology

Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.


03、通用0-503、通用0-6


PC-based control technology

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

03、通用0-4


Welcome to send an email to inquire about the specific required model of product.

E-Mailsales@tech-xm.com


Technical dataKL4112
Technologysingle-ended
Number of outputs2
Power supply24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515)
Signal current0…20 mA
Load< 500 Ω
Output error< ±0.1% (relative to end value)
Resolution15 bit, configurable to 16 bit
Conversion time~ 3.5 ms
Electrical isolation500 V (K-bus/signal voltage)
Current consumption power contactstyp. 50 mA + load
Current consumption K-bustyp. 60 mA
Bit width in the process imageoutput: 2 x 16 bit data (2 x 8 bit control/status optional)
Configurationno address or configuration setting
Special featuresincreased resolution
Weightapprox. 80 g
Operating/storage temperature0…+55°C/-25…+85°C
Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/variable
Pluggable wiringfor all KSxxxx Bus Terminals
Approvals/markingsCE, UL, ATEX, IECEx
Ex markingATEX:

II 3 G Ex ec IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc
