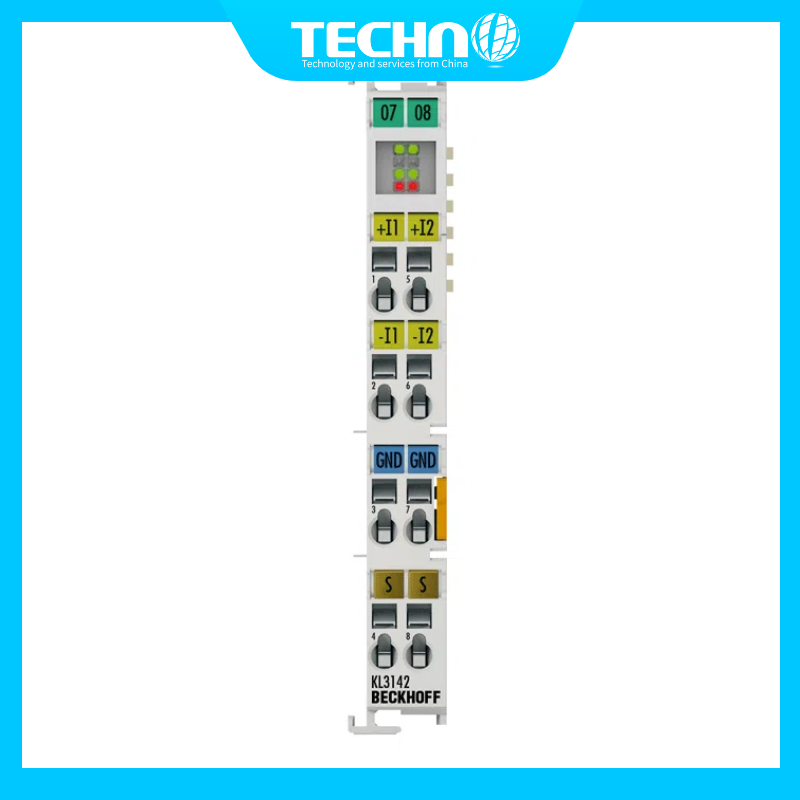

Kl3214 Kl3061 Kl3356 Kl3142 Kl3453 Kl3002 Kl3062 Kl3228 Kl3011 Kl3122
BECKHOFF
Kl3214 Kl3061 Kl3356 Kl3142 Kl3453 Kl3002 Kl3062 Kl3228 Kl3011 Kl3122


Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com


Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
| Technical data | KL3214 |
| Number of inputs | 4 |
| Power supply | via the K-bus |
| Input filter limit frequency | typ. 1 kHz |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, potentiometer: 10 Ω…1.2/4 kΩ, KTY sensors (types see documentation) |
| Measuring range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Connection method | 3-wire |
| Conversion time | approx. 170 ms default setting |
| Measuring current | < 0.5 mA (load-dependent) |
| Resolution | 0.1°C per digit |
| Measurement error/uncertainty | < ±0.5°C for Pt sensors |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Current consumption power contacts | - |
| Current consumption K-bus | typ. 120 mA |
| Special features | open-circuit recognition |
| Weight | approx. 60 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Technical data | KL3214 |
| Number of inputs | 4 |
| Power supply | via the K-bus |
| Input filter limit frequency | typ. 1 kHz |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, potentiometer: 10 Ω…1.2/4 kΩ, KTY sensors (types see documentation) |
| Measuring range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Connection method | 3-wire |
| Conversion time | approx. 170 ms default setting |
| Measuring current | < 0.5 mA (load-dependent) |
| Resolution | 0.1°C per digit |
| Measurement error/uncertainty | < ±0.5°C for Pt sensors |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Current consumption power contacts | - |
| Current consumption K-bus | typ. 120 mA |
| Special features | open-circuit recognition |
| Weight | approx. 60 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
