Availability: | |
---|---|
Quantity: | |
EL7332 EL7201 EL7031 EL7041 EL7062 EL7211 EL7342 EL7047 EL7037 EL7411
BECKHOFF
EL7332 EL7201 EL7031 EL7041 EL7062 EL7211 EL7342 EL7047 EL7037 EL7411
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

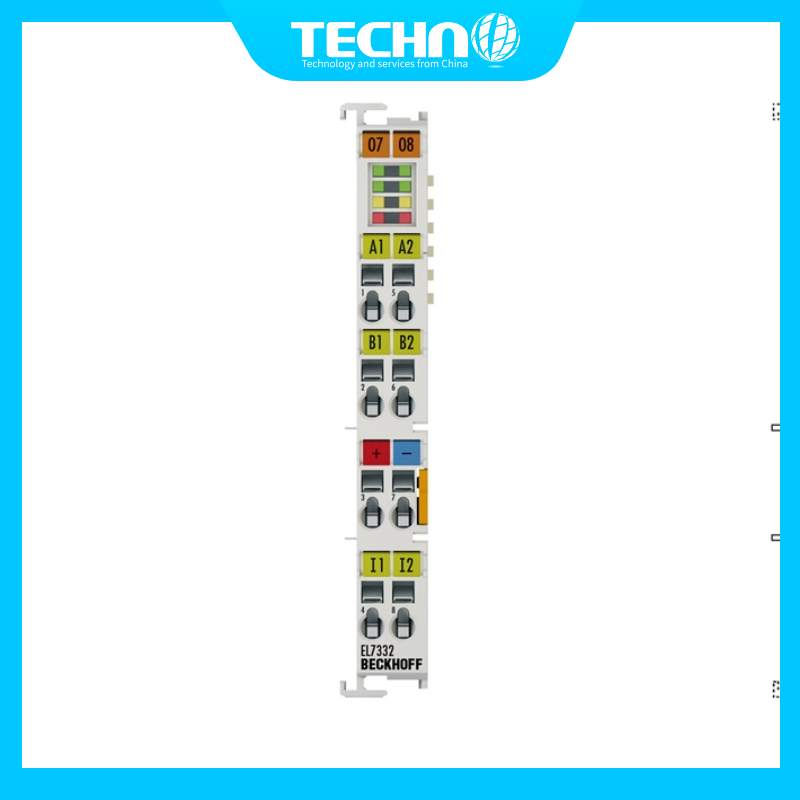

Technical data | EL7332 |
Technology | compact drive technology |
Connection method | direct motor connection |
Number of inputs | 1 x end position per channel |
Load type | DC brush motor, inductive |
Number of channels | 2 |
Number of outputs | 1 x DC motor per channel |
Supply voltage electronics | 24 V DC (via power contacts) |
Supply voltage power | 24 V DC (internally via power contacts) |
Output current | max. 1 A per channel |
Performance increase | yes, through ZB8610 fan cartridge |
Output current with ZB8610 | max. 3.0 A per channel |
PWM clock frequency | 32 kHz with 180° phase shift each |
Duty factor | 0…100% (voltage-controlled) |
Resolution | max. 10 bit current, 16 bit speed |
Current consumption power contacts | typ. 40 mA + motor current |
Current consumption E-bus | typ. 140 mA |
Distributed clocks | yes |
Special features | travel distance control |
Electrical isolation | 500 V (E-bus/field potential) |
Weight | approx. 50 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. rating/installation pos. | IP20/see documentation |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL |
Technical data | EL7332 |
Technology | compact drive technology |
Connection method | direct motor connection |
Number of inputs | 1 x end position per channel |
Load type | DC brush motor, inductive |
Number of channels | 2 |
Number of outputs | 1 x DC motor per channel |
Supply voltage electronics | 24 V DC (via power contacts) |
Supply voltage power | 24 V DC (internally via power contacts) |
Output current | max. 1 A per channel |
Performance increase | yes, through ZB8610 fan cartridge |
Output current with ZB8610 | max. 3.0 A per channel |
PWM clock frequency | 32 kHz with 180° phase shift each |
Duty factor | 0…100% (voltage-controlled) |
Resolution | max. 10 bit current, 16 bit speed |
Current consumption power contacts | typ. 40 mA + motor current |
Current consumption E-bus | typ. 140 mA |
Distributed clocks | yes |
Special features | travel distance control |
Electrical isolation | 500 V (E-bus/field potential) |
Weight | approx. 50 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. rating/installation pos. | IP20/see documentation |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL |
