EL6695 EL6071 EL6224 EL6632 EL6692 EL6653 EL6080 EL6900 EL6930 EL6910
BECKHOFF
EL6695 EL6071 EL6224 EL6632 EL6692 EL6653 EL6080 EL6900 EL6930 EL6910
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

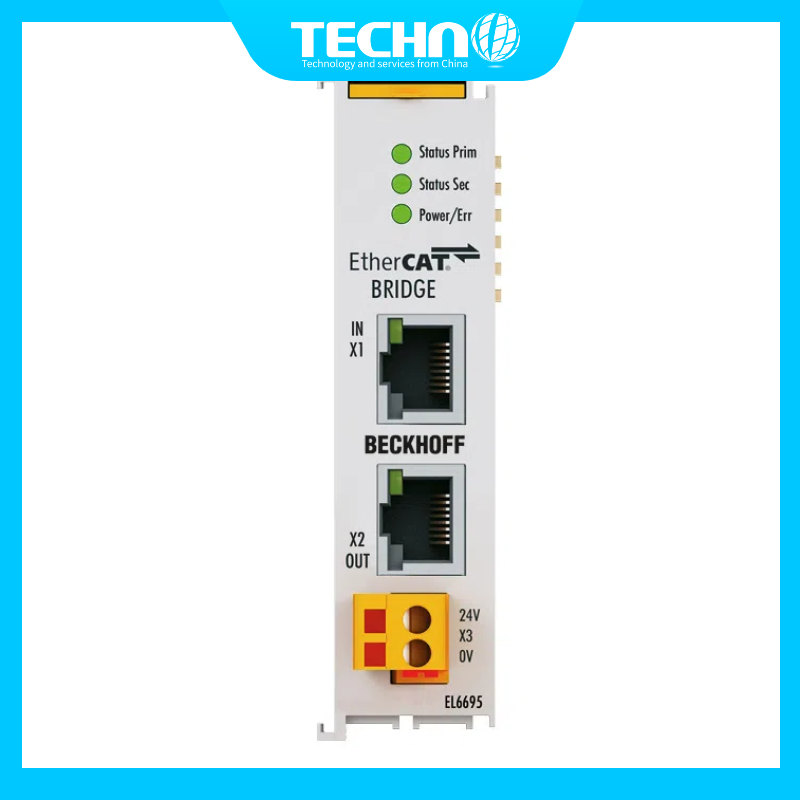

Technical data | EL6695 |
Technology | primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out |
Ports | primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output |
Function | EtherCAT distributed clock synchronization, data exchange |
Cable length | 100 m 100BASE-TX, secondary port |
Hardware diagnostics | status LEDs |
Power supply | primary: via the E-bus, secondary: via connector, 24 V |
Distributed clocks | yes |
Electrical isolation | 500 V (E-bus/secondary side) |
Current consumption | primary: E-bus 400 mA; secondary: 70 mA/24 V |
Bit width in the process image | max. 3 kbyte per direction (dependent on the EtherCAT master, TwinCAT currently max. 1400 byte) |
Special features | usable in TwinCAT as a reference clock, synchronous data exchange, flexible PDO mapping, supports AoE, EoE, FoE, VoE |
Weight | approx. 75 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, UL |
Technical data | EL6695 |
Technology | primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out |
Ports | primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output |
Function | EtherCAT distributed clock synchronization, data exchange |
Cable length | 100 m 100BASE-TX, secondary port |
Hardware diagnostics | status LEDs |
Power supply | primary: via the E-bus, secondary: via connector, 24 V |
Distributed clocks | yes |
Electrical isolation | 500 V (E-bus/secondary side) |
Current consumption | primary: E-bus 400 mA; secondary: 70 mA/24 V |
Bit width in the process image | max. 3 kbyte per direction (dependent on the EtherCAT master, TwinCAT currently max. 1400 byte) |
Special features | usable in TwinCAT as a reference clock, synchronous data exchange, flexible PDO mapping, supports AoE, EoE, FoE, VoE |
Weight | approx. 75 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, UL |
