Availability: | |
---|---|
Quantity: | |
EL5021 EL5001 EL5032 EL5112 EL5122 EL5152 EL5151 EL5002 EL5162 EL5101
BECKHOFF
EL5021 EL5001 EL5032 EL5112 EL5122 EL5152 EL5151 EL5002 EL5162 EL5101
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

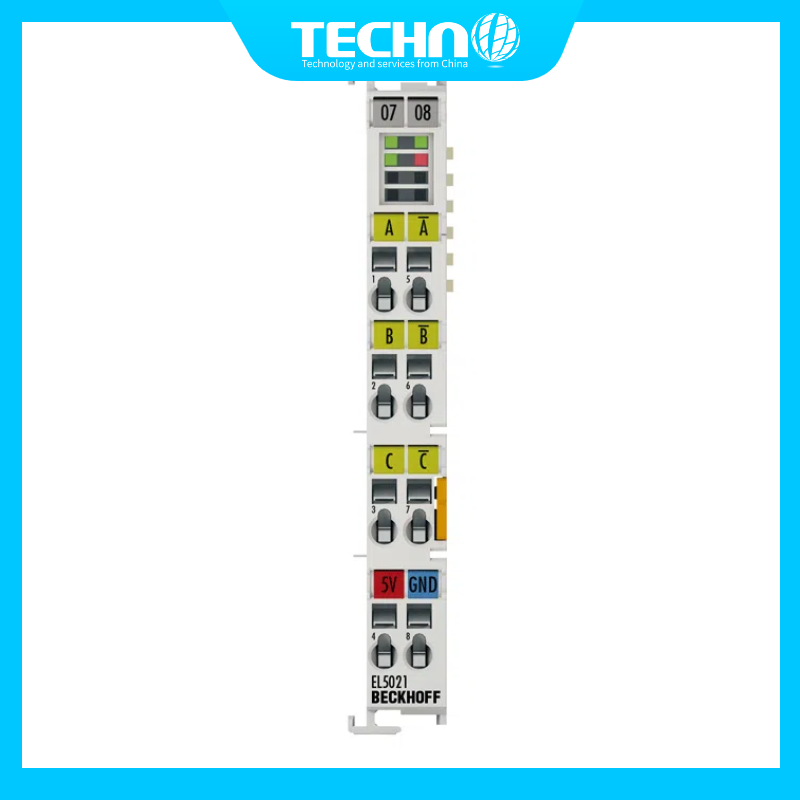

Technical data | EL5021 |
Technology | SinCos encoder interface for differential 1 VPP signal |
Number of channels | 1 |
Encoder connection | 1 x A, B, C: differential inputs 1 Vpp: A, A (inv), B, B (inv), C,C (inv) |
Encoder operating voltage | 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) |
Counter | max. 24 bit (adjustable) |
Input frequency | 250 kHz @ 10 bit (sampling rate 70 MHz) |
Distributed clocks | yes |
Nominal voltage | 24 V DC at power contact |
Resolution | max. 13 bit, 8192 steps per period |
Current consumption power contacts | typ. 50 mA + load |
Current consumption E-bus | typ. 120 mA |
Electrical isolation | 500 V (E-bus/field potential) |
Special features | latch, reset, change counting direction, amplitude and frequency error recognition, frequency-dependent period resolution, frequency counter max. 24 bit |
Weight | approx. 55 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL, ATEX, IECEx |
Ex marking | ATEX: |
II 3 G Ex ec IIC T4 Gc | |
IECEx: | |
Ex ec IIC T4 Gc | |
Technical data | EL5021 |
Technology | SinCos encoder interface for differential 1 VPP signal |
Number of channels | 1 |
Encoder connection | 1 x A, B, C: differential inputs 1 Vpp: A, A (inv), B, B (inv), C,C (inv) |
Encoder operating voltage | 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) |
Counter | max. 24 bit (adjustable) |
Input frequency | 250 kHz @ 10 bit (sampling rate 70 MHz) |
Distributed clocks | yes |
Nominal voltage | 24 V DC at power contact |
Resolution | max. 13 bit, 8192 steps per period |
Current consumption power contacts | typ. 50 mA + load |
Current consumption E-bus | typ. 120 mA |
Electrical isolation | 500 V (E-bus/field potential) |
Special features | latch, reset, change counting direction, amplitude and frequency error recognition, frequency-dependent period resolution, frequency counter max. 24 bit |
Weight | approx. 55 g |
Operating/storage temperature | 0…+55°C/-25…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/variable |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL, ATEX, IECEx |
Ex marking | ATEX: |
II 3 G Ex ec IIC T4 Gc | |
IECEx: | |
Ex ec IIC T4 Gc | |
