EL1008 EL1088 EL1094 EL1004 EL1054 EL1034 EL1018 EL1012 EL1014 EL1084
BECKHOFF
EL1008 EL1088 EL1094 EL1004 EL1054 EL1034 EL1018 EL1012 EL1014 EL1084
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

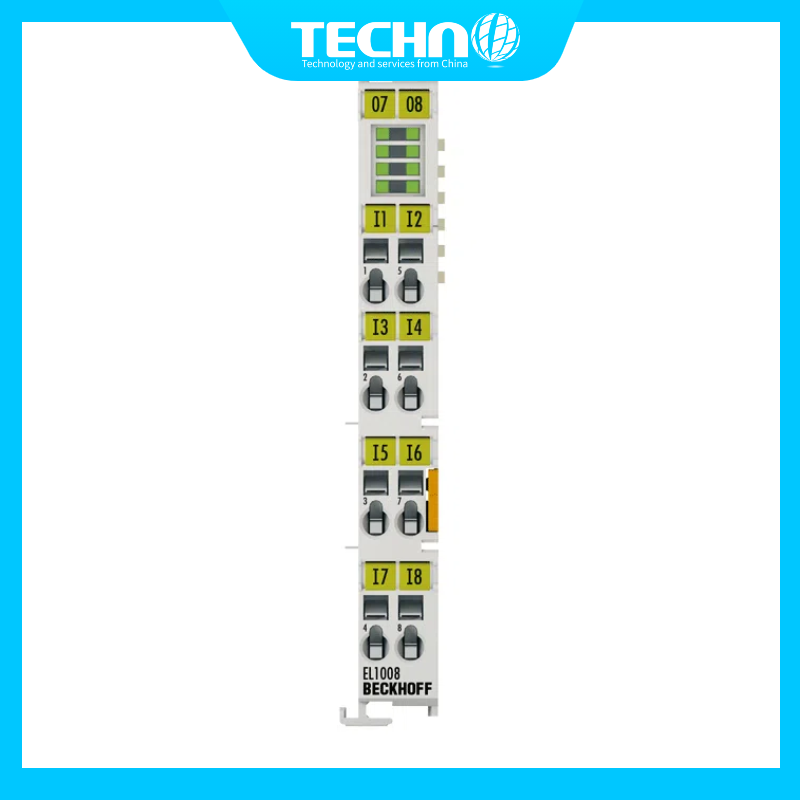

Technical data | EL1008 |
Connection technology | 1-wire |
Specification | EN 61131-2, type 1/3 |
Number of inputs | 8 |
Nominal voltage | 24 V DC (-15%/+20%) |
"0" signal voltage | -3…+5 V (EN 61131-2, type 3) |
"1" signal voltage | 11…30 V (EN 61131-2, type 3) |
Input current | typ. 3 mA (EN 61131-2, type 3) |
Input filter | typ. 3.0 ms |
Distributed clocks | - |
Current consumption power contacts | typ. 2 mA + load |
Current consumption E-bus | typ. 90 mA |
Electrical isolation | 500 V (E-bus/field potential) |
Configuration | no address or configuration setting |
Special features | standard input terminal for bouncing signals (filter 3 ms) |
Weight | approx. 55 g |
Operating/storage temperature | -25…+60°C/-40…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/see documentation |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL, ATEX, IECEx, DNV GL, cFMus |
Ex marking | ATEX: |
II 3 G Ex ec IIC T4 Gc | |
IECEx: | |
Ex ec IIC T4 Gc | |
cFMus: | |
Class I, Division 2, Groups A, B, C, D | |
Class I, Zone 2, AEx ec IIC T4 Gc |
Technical data | EL1008 |
Connection technology | 1-wire |
Specification | EN 61131-2, type 1/3 |
Number of inputs | 8 |
Nominal voltage | 24 V DC (-15%/+20%) |
"0" signal voltage | -3…+5 V (EN 61131-2, type 3) |
"1" signal voltage | 11…30 V (EN 61131-2, type 3) |
Input current | typ. 3 mA (EN 61131-2, type 3) |
Input filter | typ. 3.0 ms |
Distributed clocks | - |
Current consumption power contacts | typ. 2 mA + load |
Current consumption E-bus | typ. 90 mA |
Electrical isolation | 500 V (E-bus/field potential) |
Configuration | no address or configuration setting |
Special features | standard input terminal for bouncing signals (filter 3 ms) |
Weight | approx. 55 g |
Operating/storage temperature | -25…+60°C/-40…+85°C |
Relative humidity | 95%, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. rating/installation pos. | IP20/see documentation |
Pluggable wiring | for all ESxxxx terminals |
Approvals/markings | CE, UL, ATEX, IECEx, DNV GL, cFMus |
Ex marking | ATEX: |
II 3 G Ex ec IIC T4 Gc | |
IECEx: | |
Ex ec IIC T4 Gc | |
cFMus: | |
Class I, Division 2, Groups A, B, C, D | |
Class I, Zone 2, AEx ec IIC T4 Gc |
