Home » Products » Germany Brand 1 » Beckhoff » Cx9020-0111 Cx9020-0112 Cx9020-0115 Cx9000-0001 Cx9010-0001 Cx9010-0101 Cx9001-0001 Cx9001-0101 Beckhoff Cx9020 PLC Module

Cx9020-0111 Cx9020-0112 Cx9020-0115 Cx9000-0001 Cx9010-0001 Cx9010-0101 Cx9001-0001 Cx9001-0101 Beckhoff Cx9020 PLC Module

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • Cx9020-0111 Cx9020-0112 Cx9020-0115 Cx9000-0001 Cx9010-0001 Cx9010-0101 Cx9001-0001 Cx9001-0101

  • BECKHOFF

  • Cx9020-0111 Cx9020-0112 Cx9020-0115 Cx9000-0001 Cx9010-0001 Cx9010-0101 Cx9001-0001 Cx9001-0101

03、通用0-203、通用0-3

Beckhoff Automation

New Automation Technology

Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.


03、通用0-503、通用0-6


PC-based control technology

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

03、通用0-4


Welcome to send an email to inquire about the specific required model of product.

E-Mailsales@tech-xm.com

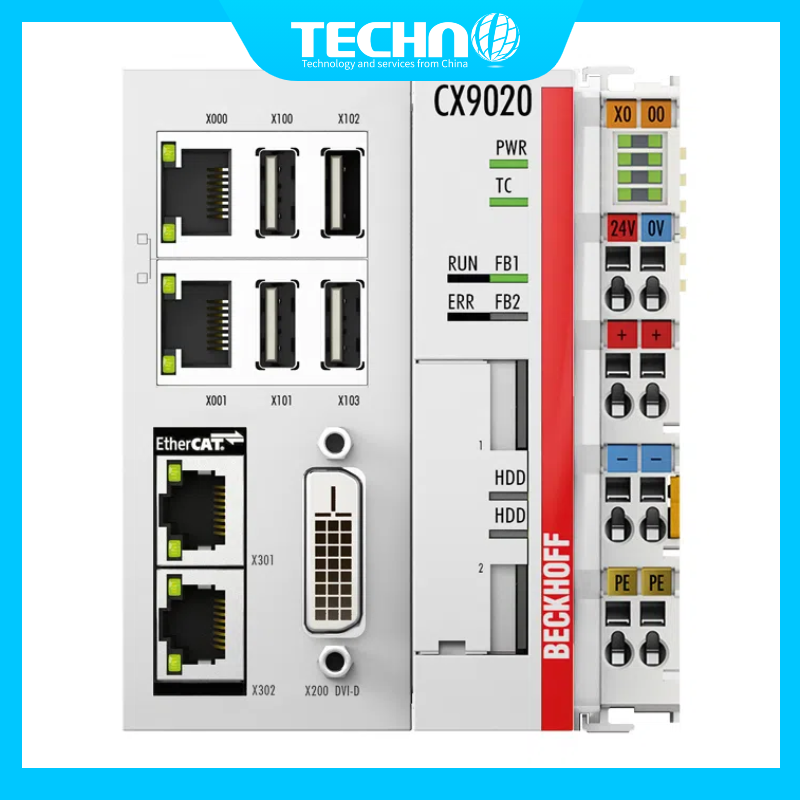

Technical dataCX9020
ProcessorArm® Cortex®-A8, 1 GHz
Number of cores1
Flash memory2 x slot for microSD card, 512 MB included (optionally expandable)
Main memory1 GB DDR3 RAM (not expandable)
Interfaces2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Coolingpassive
Diagnostics LED1 x power, 1 x TC status, 2 x flash access, 2 x bus status
Clockinternal battery-backed clock for time and date (battery exchangeable)
Operating systemWindows Embedded Compact 7, English
Control softwareTwinCAT 2 runtime

TwinCAT 3 runtime (XAR)
I/O connectionE-bus or K-bus, automatic recognition
Power supply24 V DC (-15%/+20%)
NOVRAM128 kB
Current supply E-bus/K-bus2:00 AM
Max. power consumption5 W
Max. power consumption (with loading UPS)9 W
Max. power consumption E-bus/K-bus10 W (5 V/max. 2 A)
Weightapprox. 590 g
Dimensions (W x H x D)84 mm x 100 mm x 91 mm
Relative humidity95%, no condensation
Operating/storage temperature-25…+60°C/-40…+85°C
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
Protection ratingIP20
Approvals/markingsCE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus
Ex markingATEX:

II 3 G Ex nA IIC T4 Gc

II 3 D Ex tc IIIC T135 °C Dc

IECEx:

Ex nA IIC T4 Gc

Ex tc IIIC T135 °C Dc

cFMus:

Class I, Division 2, Groups A, B, C, D

Class I, Zone 2, AEx ec IIC T4 Gc
TwinCAT 3 platform levelEconomy Plus (30); please see here for an overview of all the TwinCAT 3 platform level
