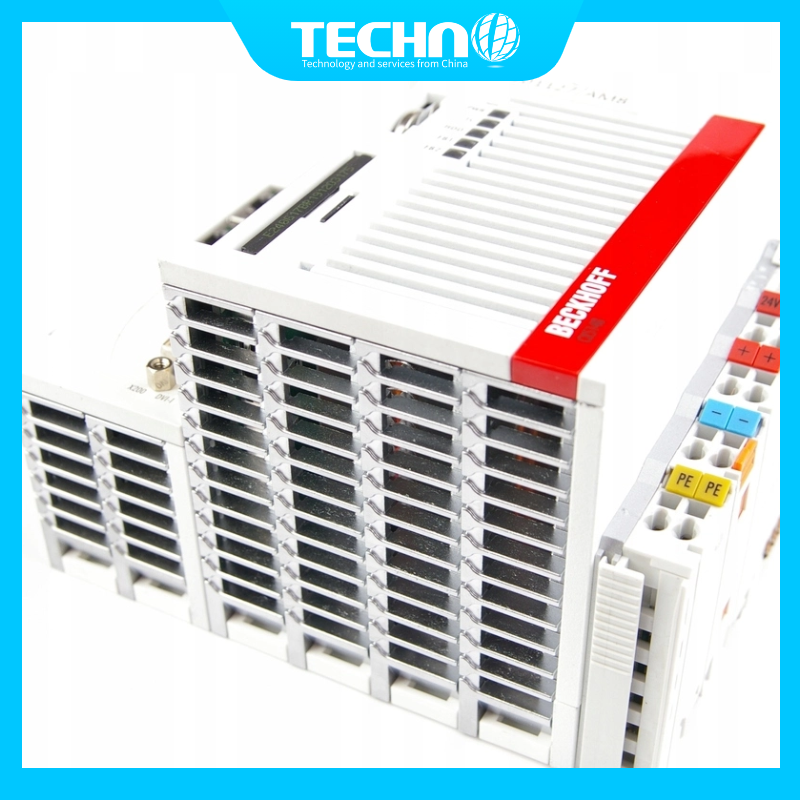

Cx5140-0135 Cx5140-0115 Cx5140-0155 Cx5140-0100 Cx5140-0120 Cx5140-0125 Cx5140-0141
BECKHOFF
Cx5140-0135 Cx5140-0115 Cx5140-0155 Cx5140-0100 Cx5140-0120 Cx5140-0125 Cx5140-0141
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Technical data | CX5140 |
Processor | Intel Atom® E3845, 1.91 GHz |
Number of cores | 4 |
Flash memory | slot for CFast card and microSD card, cards not included |
Main memory | 4 GB DDR3 RAM (not expandable) |
1-second UPS | integrated (1 MB on CFast card) |
Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
Cooling | passive |
Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
Clock | internal battery-backed clock for time and date (battery exchangeable) |
Operating system | Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD |
Control software | TwinCAT 2 runtime |
TwinCAT 3 runtime (XAR) | |
I/O connection | E-bus or K-bus, automatic recognition |
Power supply | 24 V DC (-15%/+20%) |
Current supply E-bus/K-bus | 2:00 AM |
Max. power consumption | 16 W |
Max. power consumption (with loading UPS) | 23 W |
Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
Weight | approx. 1095 g |
Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
Relative humidity | 95%, no condensation |
Operating/storage temperature | -25…+60°C/-40…+85°C |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protection rating | IP20 |
Approvals/markings | CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus |
Ex marking | ATEX: |
II 3 G Ex nA IIC T4 Gc | |
II 3 D Ex tc IIIC T135 °C Dc | |
IECEx: | |
Ex nA IIC T4 Gc | |
Ex tc IIIC T135 °C Dc | |
cFMus: | |
Class I, Division 2, Groups A, B, C, D | |
Class I, Zone 2, AEx ec IIC T4 Gc | |
TwinCAT 3 platform level | Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level |
Technical data | CX5140 |
Processor | Intel Atom® E3845, 1.91 GHz |
Number of cores | 4 |
Flash memory | slot for CFast card and microSD card, cards not included |
Main memory | 4 GB DDR3 RAM (not expandable) |
1-second UPS | integrated (1 MB on CFast card) |
Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
Cooling | passive |
Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
Clock | internal battery-backed clock for time and date (battery exchangeable) |
Operating system | Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD |
Control software | TwinCAT 2 runtime |
TwinCAT 3 runtime (XAR) | |
I/O connection | E-bus or K-bus, automatic recognition |
Power supply | 24 V DC (-15%/+20%) |
Current supply E-bus/K-bus | 2:00 AM |
Max. power consumption | 16 W |
Max. power consumption (with loading UPS) | 23 W |
Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
Weight | approx. 1095 g |
Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
Relative humidity | 95%, no condensation |
Operating/storage temperature | -25…+60°C/-40…+85°C |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
Protection rating | IP20 |
Approvals/markings | CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus |
Ex marking | ATEX: |
II 3 G Ex nA IIC T4 Gc | |
II 3 D Ex tc IIIC T135 °C Dc | |
IECEx: | |
Ex nA IIC T4 Gc | |
Ex tc IIIC T135 °C Dc | |
cFMus: | |
Class I, Division 2, Groups A, B, C, D | |
Class I, Zone 2, AEx ec IIC T4 Gc | |
TwinCAT 3 platform level | Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level |
