Cu2508 Cu2608 Cu2008 Cu2005 Cu2208 Cu2016 Cu2508-0022
BECKHOFF
Cu2508 Cu2608 Cu2008 Cu2005 Cu2208 Cu2016 Cu2508-0022
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com
Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.
Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.
Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

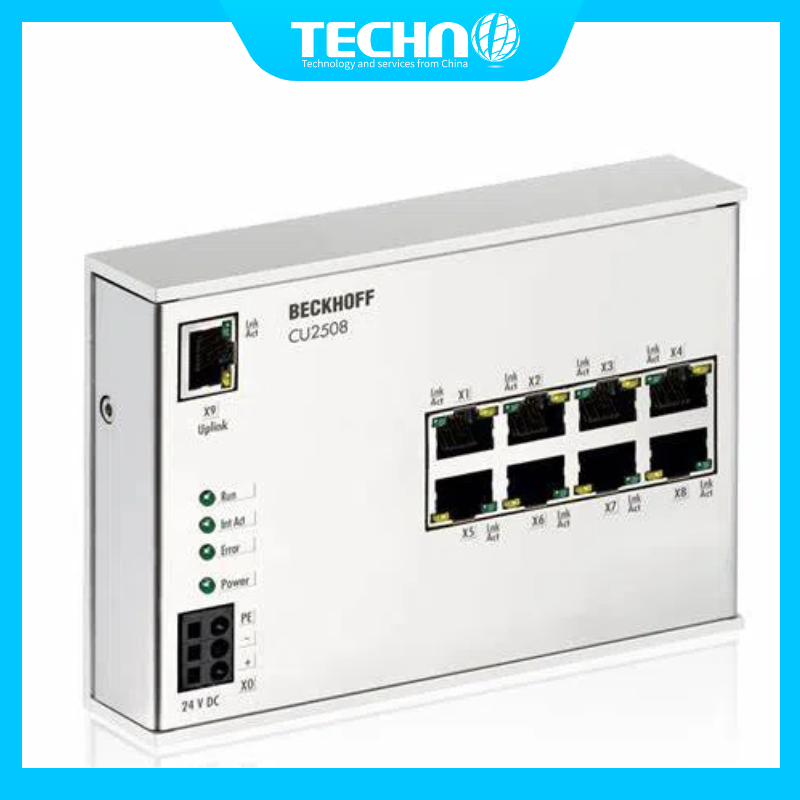

Technical data | CU2508 |
Protocol | Ethernet TCP/IP; real-time protocols: EtherCAT, PROFINET and others (depending on driver) |
Number of Ethernet ports | 8 x 100 Mbit/s and 1 x 1 Gbit/s (uplink) |
Ethernet interface | RJ45 |
Cable length | up to 100 m twisted pair |
Data transfer rates | 100BASE-TX and 1 Gbit/s |
Hardware diagnostics | LEDs |
Power supply | 24 (18…30) V DC, 250 mA, 3-pin connection (+, -, PE) |
Dimensions (W x H x D) | approx. 146 mm x 100 mm x 30 mm |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, UL |
Technical data | CU2508 |
Protocol | Ethernet TCP/IP; real-time protocols: EtherCAT, PROFINET and others (depending on driver) |
Number of Ethernet ports | 8 x 100 Mbit/s and 1 x 1 Gbit/s (uplink) |
Ethernet interface | RJ45 |
Cable length | up to 100 m twisted pair |
Data transfer rates | 100BASE-TX and 1 Gbit/s |
Hardware diagnostics | LEDs |
Power supply | 24 (18…30) V DC, 250 mA, 3-pin connection (+, -, PE) |
Dimensions (W x H x D) | approx. 146 mm x 100 mm x 30 mm |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Protect. rating/installation pos. | IP20/variable |
Approvals/markings | CE, UL |
