Bk4000 Bk4020 Bk5250 Bk5150 Bk5220 Bk5200 Bk5120 Bk5151
BECKHOFF
Bk4000 Bk4020 Bk5250 Bk5150 Bk5220 Bk5200 Bk5120 Bk5151


Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com


Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

Welcome to send an email to inquire about the specific required model of product.
E-Mail:sales@tech-xm.com

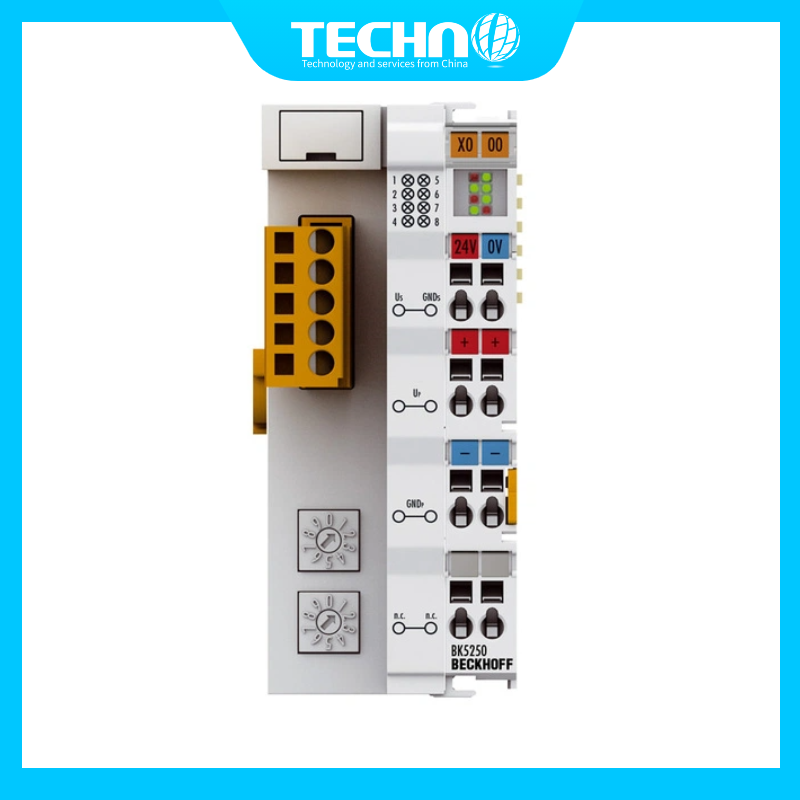

| Technical data | BK5250 |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Digital peripheral signals | 1,020 inputs/outputs |
| Analog peripheral signals | 256 inputs/outputs |
| Configuration possibility | via KS2000 or the controller |
| Data transfer rates | automatic detection |
| Bus interface | 1 x open pluggable connector, 5-pin, included |
| Data transfer medium | screened, twisted copper wire with power supply, 5-pin |
| Power supply | 24 V DC (-15%/+20%), through bus cable 11…25 V (conforms to DeviceNet specification) |
| Serial interface | configuration interface |
| Diagnostics LED | 2 x power supply, 2 x K-bus, 2 x fieldbus |
| Current supply K-bus | 1750 mA |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage Bus Coupler) |
| Operating modes | bit strobe, polling, cyclic, change of state (COS) |
| DeviceNet type | communications adapter |
| Weight | approx. 100 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc |
| IECEx: Ex ec IIC T4 Gc |
| Technical data | BK5250 |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Digital peripheral signals | 1,020 inputs/outputs |
| Analog peripheral signals | 256 inputs/outputs |
| Configuration possibility | via KS2000 or the controller |
| Data transfer rates | automatic detection |
| Bus interface | 1 x open pluggable connector, 5-pin, included |
| Data transfer medium | screened, twisted copper wire with power supply, 5-pin |
| Power supply | 24 V DC (-15%/+20%), through bus cable 11…25 V (conforms to DeviceNet specification) |
| Serial interface | configuration interface |
| Diagnostics LED | 2 x power supply, 2 x K-bus, 2 x fieldbus |
| Current supply K-bus | 1750 mA |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage Bus Coupler) |
| Operating modes | bit strobe, polling, cyclic, change of state (COS) |
| DeviceNet type | communications adapter |
| Weight | approx. 100 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc |
| IECEx: Ex ec IIC T4 Gc |
