Home » Products » Germany Brand 1 » Beckhoff » Bc9000 Bc7300 Bc3100 Bc9050 Bc9191 Bc8150 Bc5150 Bc3150 Bc5250 Bc9120 Beckhoff Coupler

Bc9000 Bc7300 Bc3100 Bc9050 Bc9191 Bc8150 Bc5150 Bc3150 Bc5250 Bc9120 Beckhoff Coupler

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • Bc9000 Bc7300 Bc3100 Bc9050 Bc9191 Bc8150 Bc5150 Bc3150 Bc5250 Bc9120

  • BECKHOFF

  • Bc9000 Bc7300 Bc3100 Bc9050 Bc9191 Bc8150 Bc5150 Bc3150 Bc5250 Bc9120

03、通用0-203、通用0-3

Beckhoff Automation

New Automation Technology

Beckhoff implements open automation systems using proven PC-based control technology. The main areas that the product range covers are industrial PCs, I/O and fieldbus components, drive technology, automation software, control cabinet-free automation, and hardware for machine vision. Product ranges that can be used as separate components or integrated into a complete and mutually compatible control system are available for all sectors. Our New Automation Technology stands for universal and industry-independent control and automation solutions that are used worldwide in a large variety of different applications, ranging from CNC-controlled machine tools to intelligent building control.


03、通用0-503、通用0-6


PC-based control technology

Since Beckhoff's foundation in 1980, the development of innovative products and solutions on the basis of PC-based control technology has been the foundation of the company's continued success. We recognized many standards in automation technology that are taken for granted today at an early stage and successfully introduced to the market as innovations. Beckhoff's philosophy of PC-based control as well as the invention of the Lightbus system and TwinCAT automation software are milestones in automation technology and have proven themselves as powerful alternatives to traditional control technology. EtherCAT, the real-time Ethernet solution, provides a powerful and future-oriented technology for a new generation of control concepts.

03、通用0-4


Welcome to send an email to inquire about the specific required model of product.

E-Mailsales@tech-xm.com

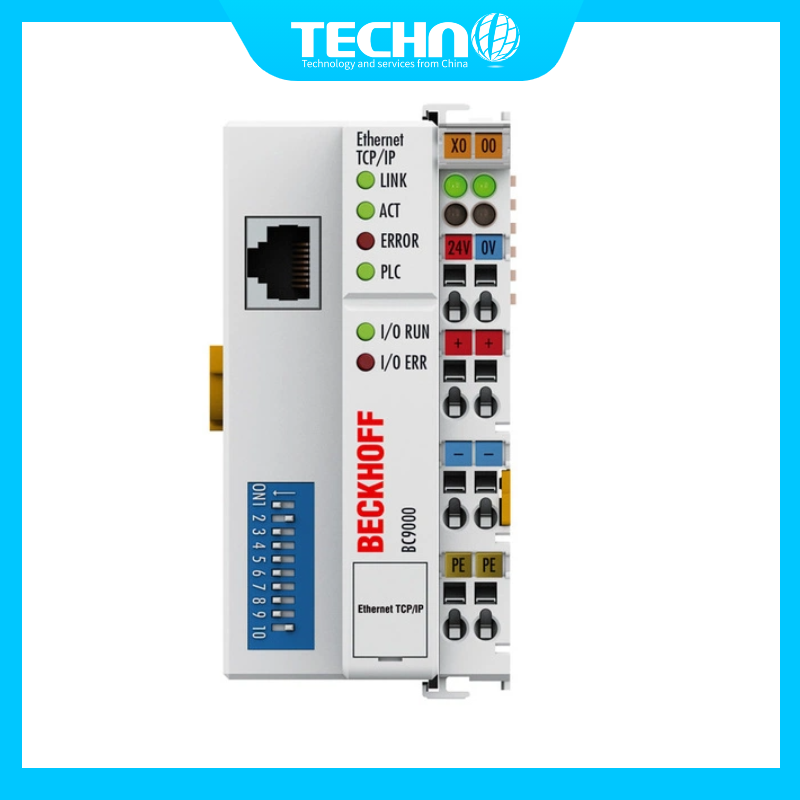

Technical dataBC9000
Number of Bus Terminals64
Max. number of bytes fieldbus512 byte input and 512 byte output
Max. number of bytes process image512 byte input and 512 byte output
Digital peripheral signals512 inputs/outputs
Analog peripheral signals128 inputs/outputs
ProtocolTwinCAT ADS, Modbus TCP
Configuration possibilityvia KS2000 or Ethernet
Data transfer rates10/100 Mbit/s, automatic recognition of the transmission rate
Bus interface1 x RJ45
Power supply24 V DC (-15%/+20%)
Input current70 mA + (total K-bus current)/4, 500 mA max.
Starting current2.5 x continuous current
Recommended fuse≤ 10 A
Current supply K-bus1750 mA
Power contactsmax. 24 V DC/max. 10 A
Electrical isolation500 V (power contact/supply voltage/fieldbus)
Weightapprox. 170 g
Operating/storage temperature-25…+60°C/-40…+85°C
Protect. rating/installation pos.IP20/variable
Approvals/markingsCE, UL, ATEX, IECEx, DNV GL
Ex markingATEX: II 3 G Ex ec IIC T4 Gc

IECEx: Ex ec IIC T4 Gc
